Introduction

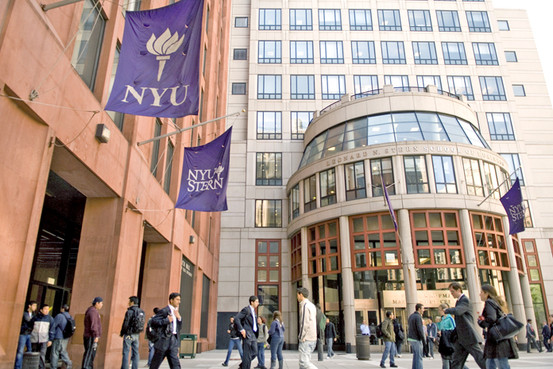

5th year PhD candidate at NYU Stern

interests

• Social influence
• Causal Inference and Web Experiments
• Bayesian modeling
• Prediction

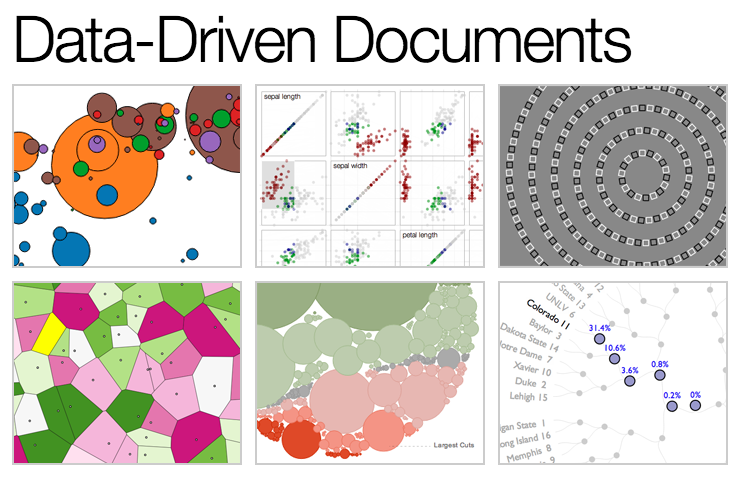

toolbox

lifelong Eagles fan

The Rise of Sports Analytics

More Recently

Recipe for success

1. Ask a good question
2. Gather data that can answer it
3. Carefully build and test simple models
4. Embrace uncertainty
5. Be a Bayesian

Importance of Questions

Far better an approximate answer to the right question, which is often vague, than an exact answer to the wrong question, which can always be made precise.

— John Tukey

Data

Tutorial on Web Scraping

Building Models

Since all models are wrong the scientist cannot obtain a ‘correct’ one by excessive elaboration. On the contrary following William of Occam he should seek an economical description of natural phenomena. Just as the ability to devise simple but evocative models is the signature of the great scientist so overelaboration and overparameterization is often the mark of mediocrity.

— George E.P. Box

Uncertainty

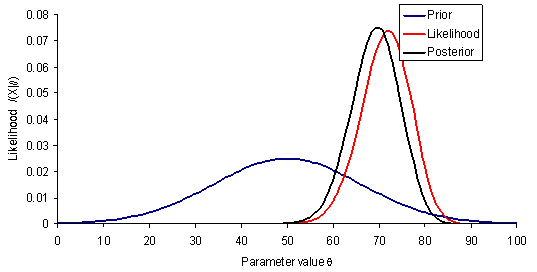

Be a Bayesian

Three Types of Questions

• Measurement
• Prediction
• Decision

Measurement

1. Normalize
2. Put a confidence interval on it
3. Nothing is i.i.d.

Common theme?

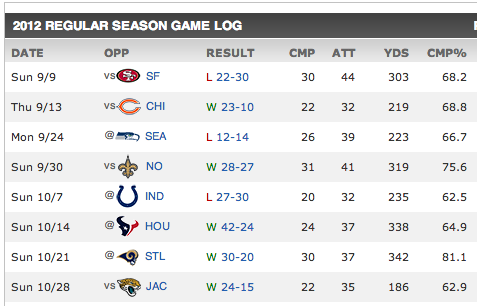

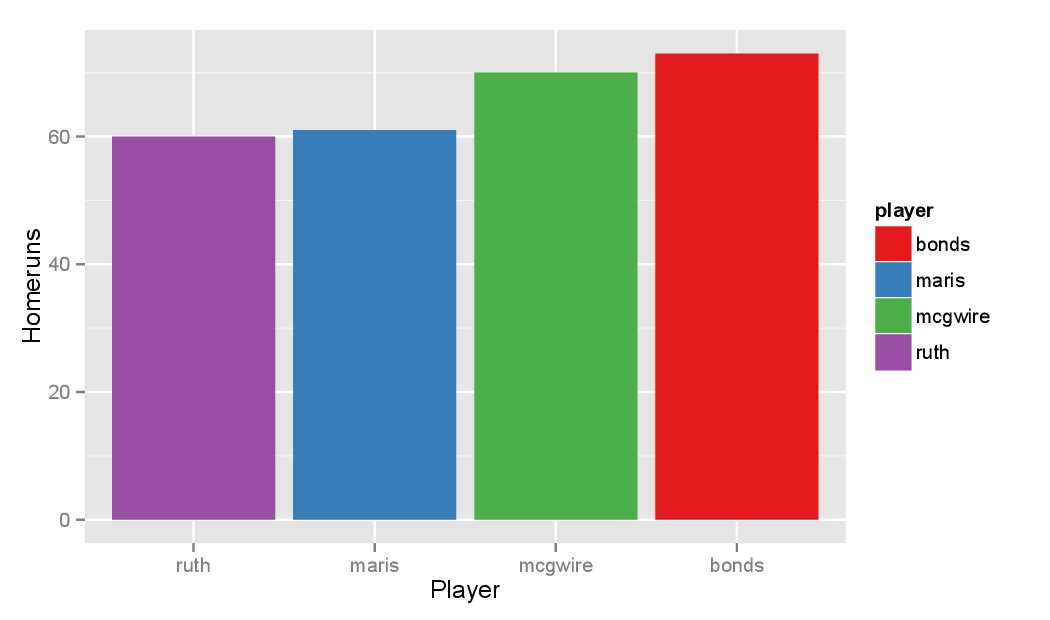

Counts = The most useless

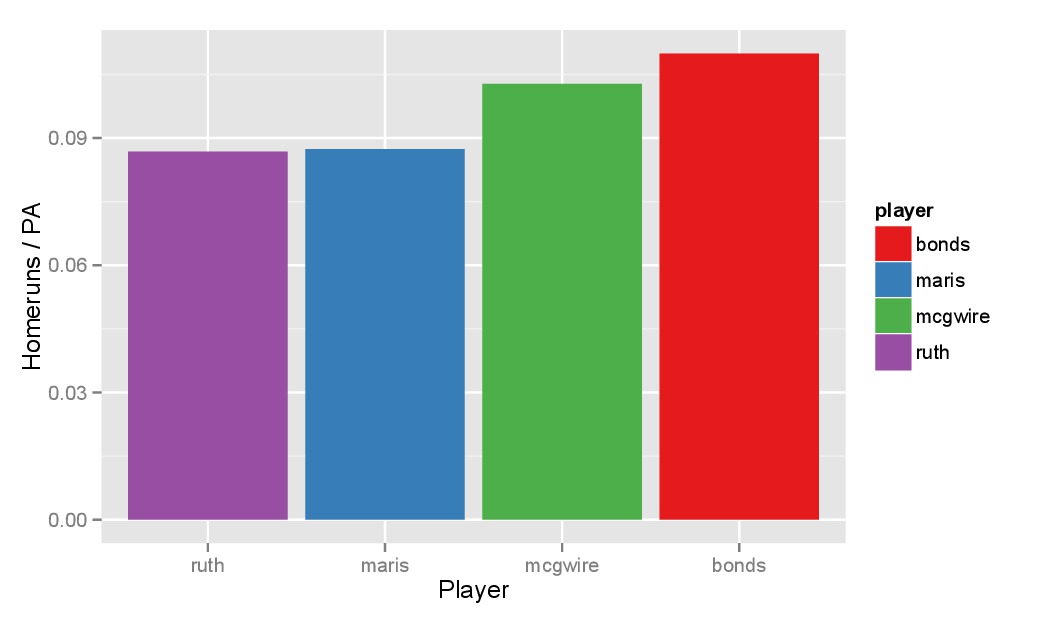

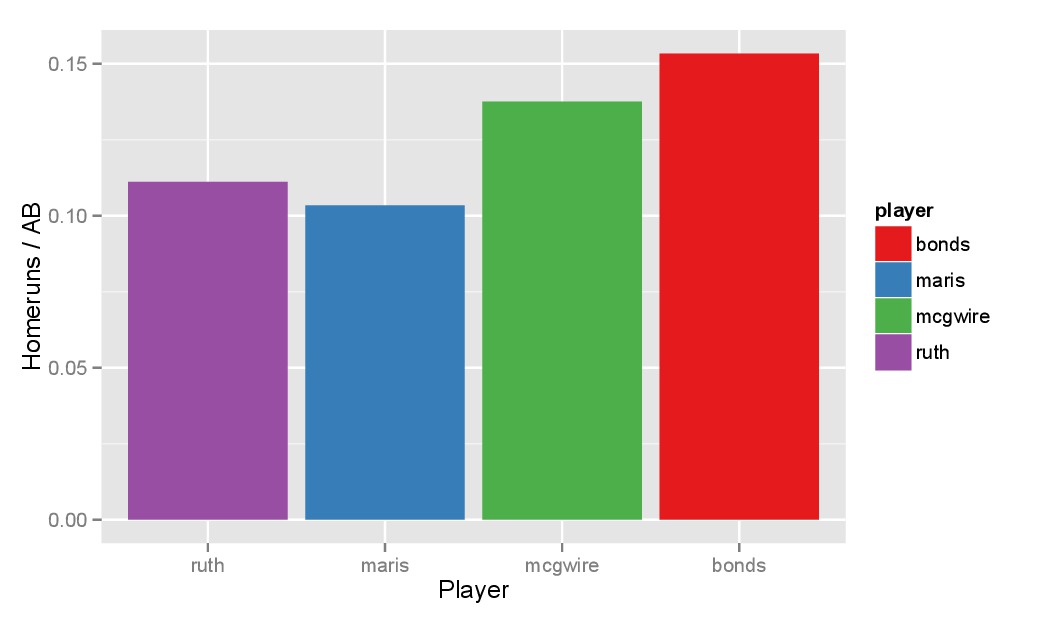

Normalize by Opportunity = Rates

Normalize by Opportunity (Take 2)

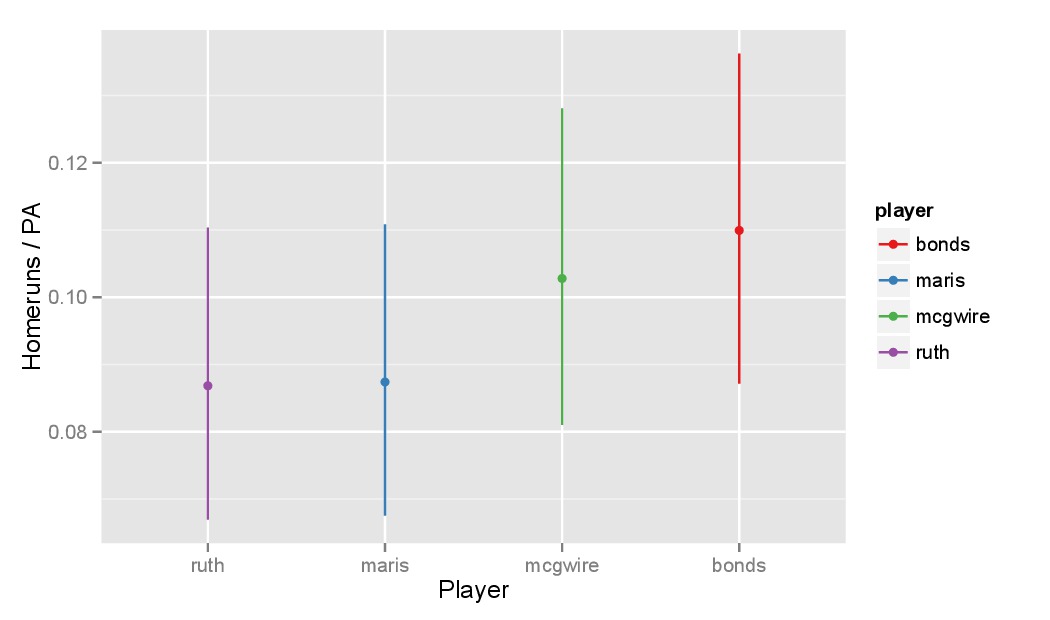

Account for Uncertainty

Opponent Adjustments

\[ P(\mbox{complete}=1) = \mbox{logit}^{-1}(\alpha_i + \beta_j + \epsilon_{ijk} )\]

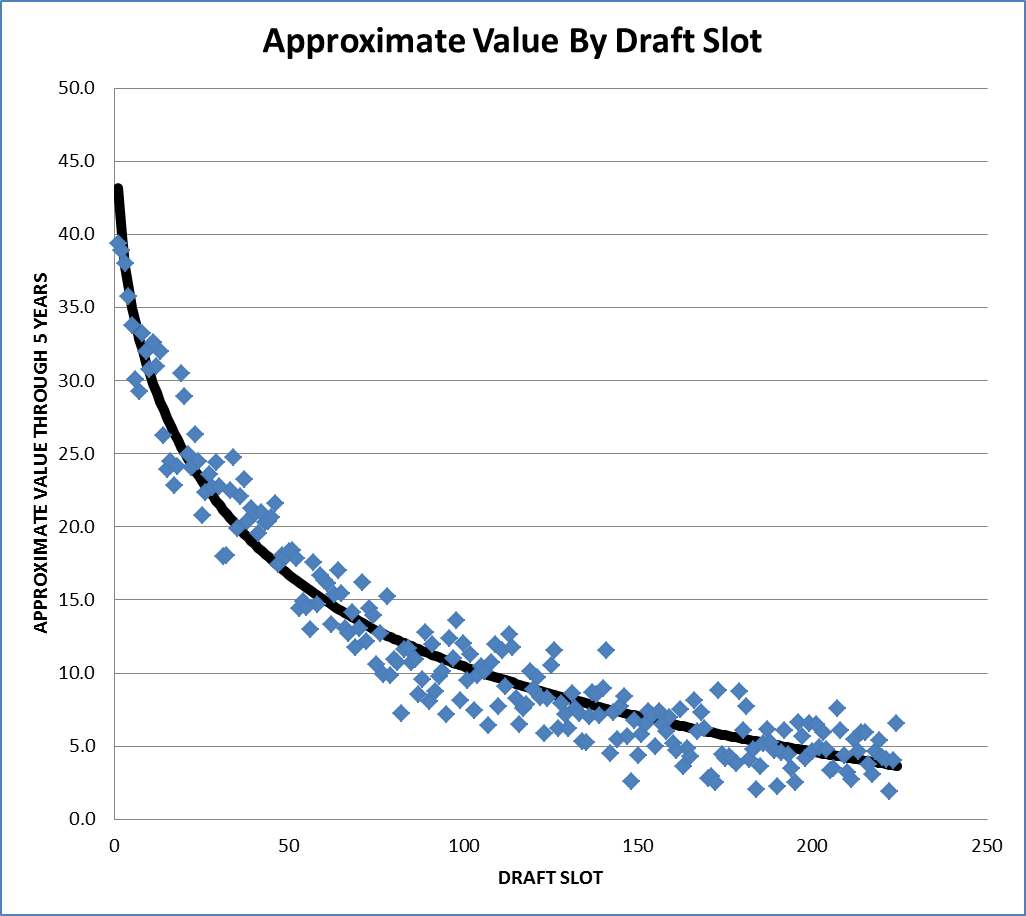

Application: NFL Draft Pick Value

Prediction

1. Mean regression
2. Predict a distribution
3. Forward cross-validation

Regression to the Mean

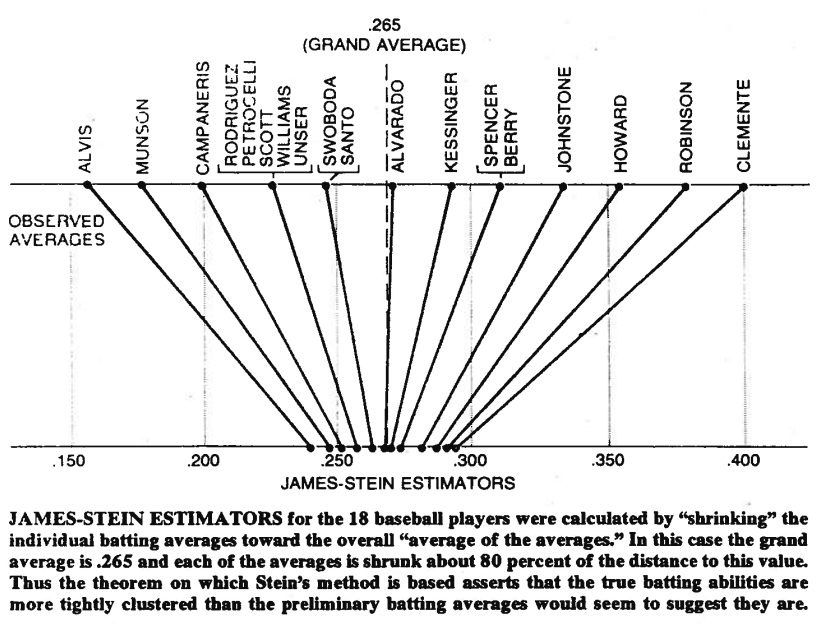

Shrinkage Estimators

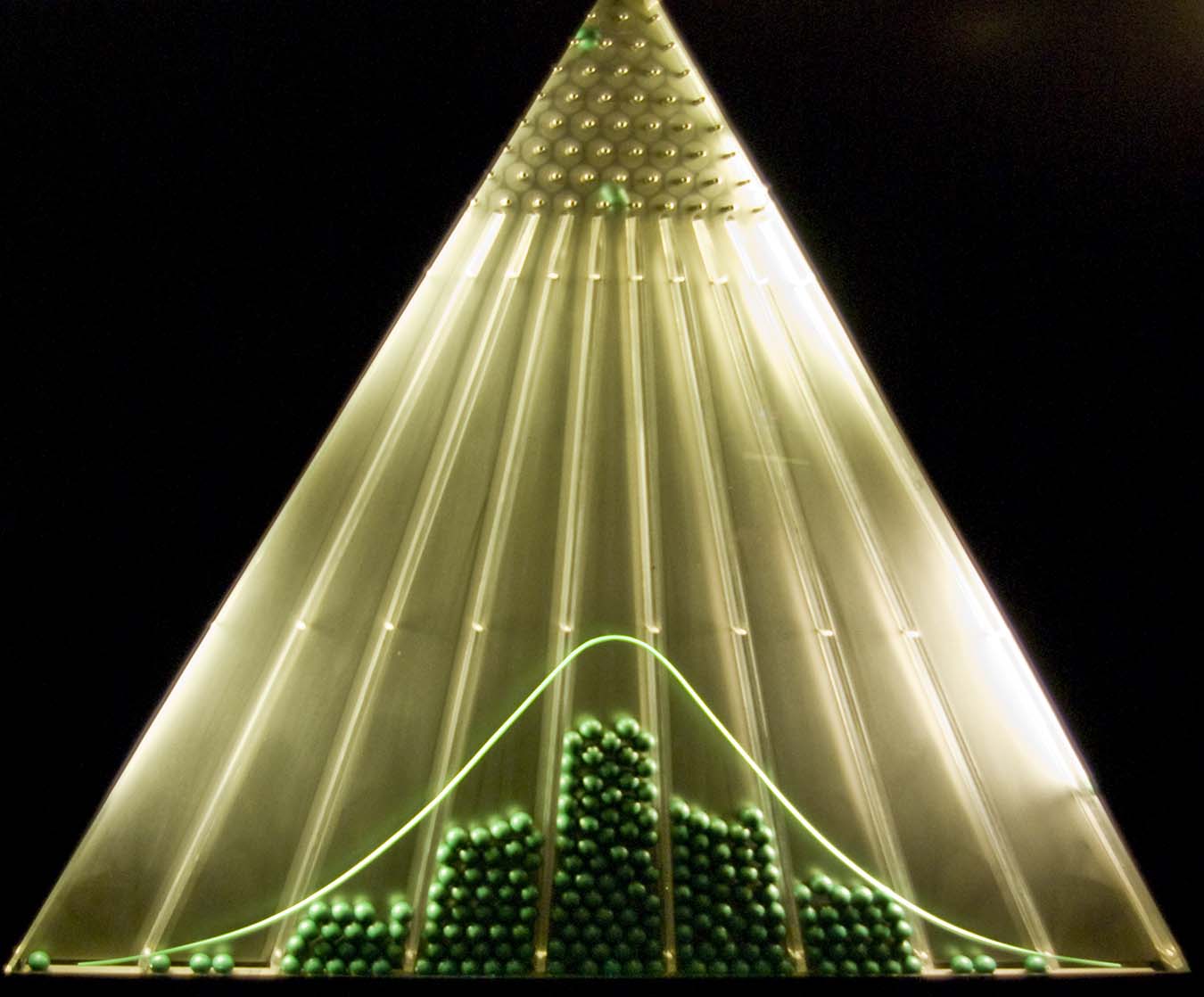

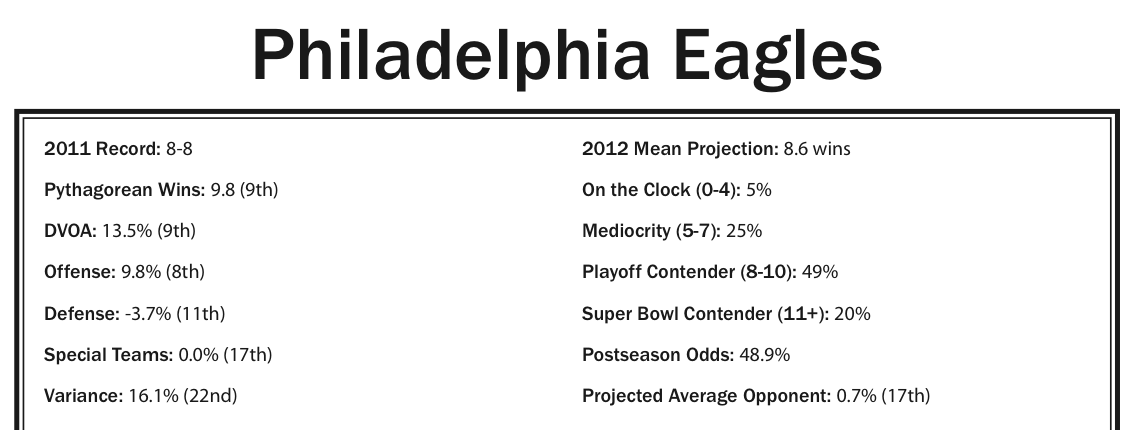

Predict a Distribution

Forward Cross-validation

1. Fit the model to the data \(y_1, y_2, \ldots, y_t\) and let \(\hat{y}_{t+1}\) denote the forecast of the next observation.
2. Compute the error \(e_{t+1} = y_{t+1} - \hat{y}_{t+1}\) for the forecast observation.
3. Repeat step 1 for \(t = m, \ldots, n-1\) where \(m\) is the minimum number of observations needed for fitting the model.
4. Compute MSE or ROC from \(e_{m+1}, \ldots, e_n\)

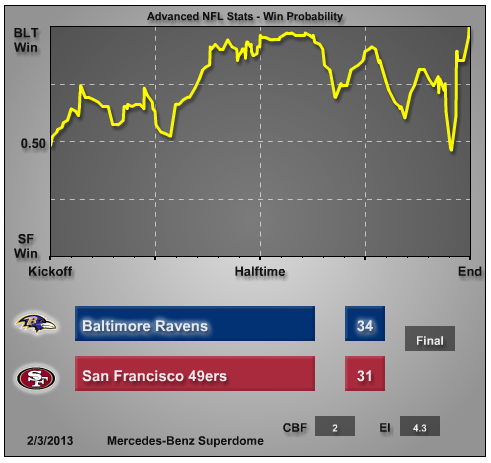

Application: In-game Win Probabilities

Decision

Similar to prediction, but you control some of the variables:

• Personnel
• Strategy

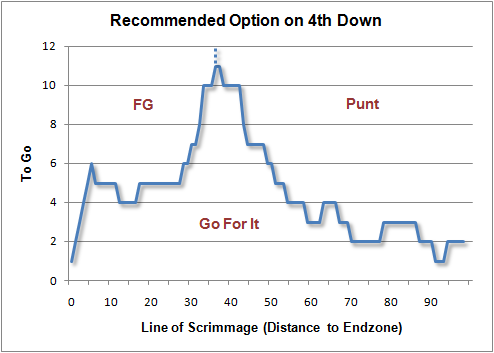

Case Study: 4th Down Decision

In the NFL, teams have 3 options on 4th down:

• Run a play
• Field Goal Attempt
• Punt

http://www.advancednflstats.com/2009/09/4th-down-study-part-1.html

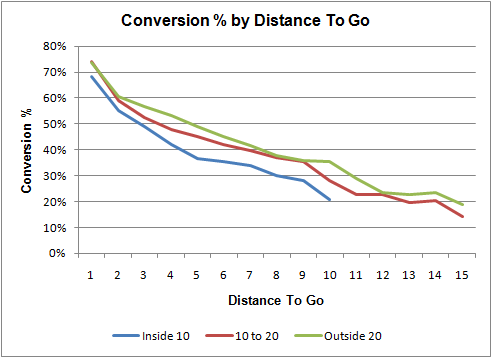

Running a play:

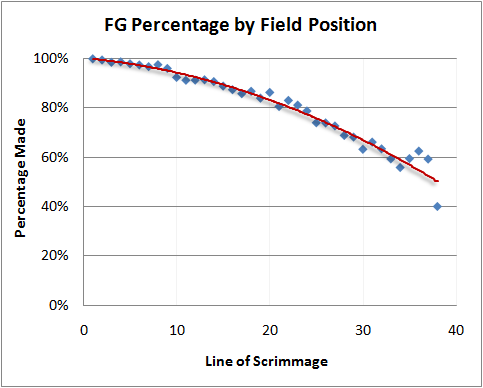

Field Goal Attempt:

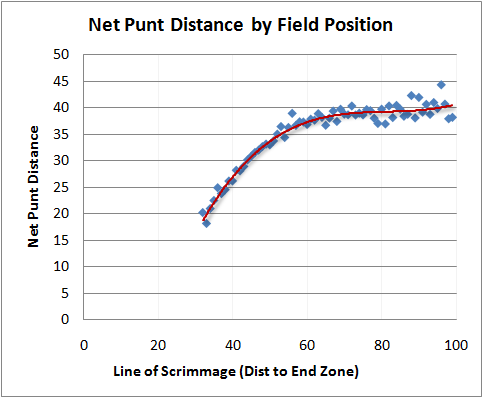

Punt:

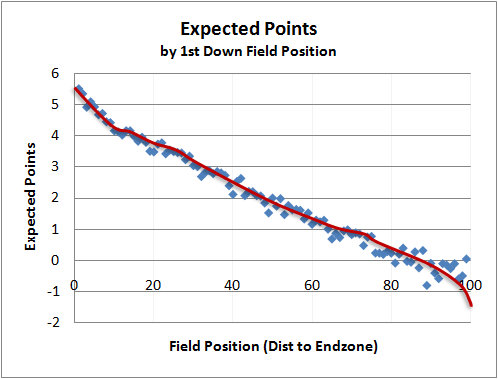

Field Position Value:

Optimal Decision:

Ranking Models for NFL Teams

Ranking == Decision Tool

where to go to college?

Ranking == Description

which colleges are being chosen over others?

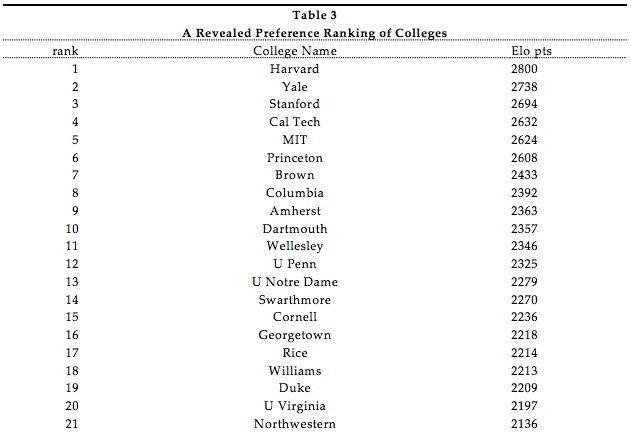

"A Revealed Preference Ranking of U.S. Colleges and Universities" (Avery et al. 2004)

Ranking == Total ordering

• set of items: \( X \)
• binary relation: \( \geq \)
• transitivity: \( a \geq b \; \wedge \; b \geq c \Rightarrow a \geq c \)
• totality: \( a \geq b \; \vee \; b \geq a \; \forall a, b \in X \)
• anti-symmetry: \( a \geq b \; \wedge \; b \geq a \; \Leftrightarrow a = b \)

Ranking == Classification

Ranking problem can be transformed into a two-class classification problem via the pairwise transform.

Goal: Learn \( \; f : X \times X \rightarrow \{-1,1\} \).

Ranking == Regression

All we have to do is use: \( (\mathbb{R}, \geq) \)!

• Obviously satisfies total ordering criteria.
• But has a bit more: we have/need a metric.
• Shows ranking can be a regression problem.

Goal: Learn scoring function \( q : X \rightarrow \mathbb{R} \) .

Getting it wrong: Loss Functions

• Descriptive loss
• Predictive loss
• Ranking agreements

Zero-One Loss

Count the games where the ranking-predicted winner is upset.

Misrank Loss

If the ranking-predicted winner loses, add the difference in ranks to the loss.

Win Matrix

Season: 2012 Week: 17

Ranking Agreement

Kendall tau distance is a metric that counts the number of pairwise disagreements between two rankings.

Two rankings \( R_1, R_2 \) disagree on pair \( i, j \) if:

\[ R_1(i) > R_1(j) \wedge R_2(i) < R_2(j) \]

Useful if we want to match some existing ranking, say ESPN.com Power Rankings.

Pythagorean Wins

From 1988 through 2004, 11 of 16 Super Bowls were won by the team that led the NFL in Pythagorean wins, while only seven were won by the team with the most actual victories. Super Bowl champions that led the league in Pythagorean wins but not actual wins include the 2004 Patriots, 2000 Ravens, 1999 Rams and 1997 Broncos.

— Football Outsiders Almanac (2011)

See also this post.

Formula

Points for \( = y \), Points against \( = x \)

Win Rate \( = \frac{y^{\beta}}{x^{\beta} + y^{\beta}} \)

Set \( \beta \) empirically, different for each sport.

\( \beta \) can be thought of as a shrinkage parameter.

Visualization

Pythagorean Wins

1		9		17		25
2		10		18		26
3		11		19		27
4		12		20		28
5		13		21		29
6		14		22		30
7		15		23		31
8		16		24		32

Eigenvector Method

Idea: iteratively adjust for strength of schedule. Give more credit to victories over teams which are "good"

\( r_i \) is the score of team \( i \). \( a_{ij} \) is 1 if \( i \) beat \( j \).

\[ \lambda r_i = \frac{1}{n_i} = \sum_{j=1}^N a_{ij} r_j \]

\[ \mathbf{A} \mathbf{r} = \lambda \mathbf{r} \]

Perron-Frobenius

If \( \mathbf{A} \) is nonnegative and irreducible, it has a strictly positive eigenvector corresponding to its largest eigenvalue.

Intuition

\[ \begin{array}{r} DAL \\ NYG \\ PHI \\ WAS \end{array} \left( \begin{array}{cccc} 0 & 1 & 2 & 0 \\ 1 & 0 & 1 & 1 \\ 0 & 1 & 0 & 0 \\ 2 & 1 & 2 & 0 \end{array} \right) \left( \begin{array}{c} 1 \\ 1 \\ 1 \\ 1 \end{array} \right) = \left( \begin{array}{c} 3 \\ 3 \\ 1 \\ 5 \end{array} \right) \]

Second order wins

\[ \left( \begin{array}{cccc} 0 & 1 & 2 & 0 \\ 1 & 0 & 1 & 1 \\ 0 & 1 & 0 & 0 \\ 2 & 1 & 2 & 0 \end{array} \right) \left( \begin{array}{cccc} 0 & 1 & 2 & 0 \\ 1 & 0 & 1 & 1 \\ 0 & 1 & 0 & 0 \\ 2 & 1 & 2 & 0 \end{array} \right) \left( \begin{array}{c} 1 \\ 1 \\ 1 \\ 1 \end{array} \right) = \left( \begin{array}{c} 5 \\ 9 \\ 3 \\ 11 \end{array} \right) \]

Must normalize this output vector by its norm.

K-th order rank

\[ r_k = \frac{A^{k} r_0}{| A^{k} r_0 | } \]

The limit of this is just the first eigenvector!

Power iteration method

def power_iteration(m, iters=10000):
    x0 = np.ones(m.shape[0])

    for i in range(iters):
        x0 = np.dot(m,x0)
        x0 /= np.linalg.norm(x0,1)

    return x0

Aside: PageRank

Redefine the preference matrix \( A \):

\[ A' = (1 - \alpha) A + \alpha \frac{1}{N} M \]

where \( M \) is a matrix of all ones.

Eigenvector Method

1		9		17		25
2		10		18		26
3		11		19		27
4		12		20		28
5		13		21		29
6		14		22		30
7		15		23		31
8		16		24		32

Bradley-Terry-Luce Model

\[ P(i>j) = \frac{1}{1 + e^{-(q_i - q_j)}} = \mbox{logit}^{-1}(q_i - q_j) \]

(Bradley & Terry, 1952; Luce, 1959)

This is basically the same as a Rasch model from education.

BTL evolved

• Add a parameter for home-field advantage.
• Weight observations so that older games count less toward the likelihood.
• Regularization.
• Add control variables for random events that affect outcomes but are NOT part of team quality.
• e.g. fumbles lost, defensive touchdowns, missed field goals.

BTL Method

1		9		17		25
2		10		18		26
3		11		19		27
4		12		20		28
5		13		21		29
6		14		22		30
7		15		23		31
8		16		24		32

Optimal Rankings

What's the absolute best we can do in describing the data with a ranking?

Games as a Graph

Season: 2011 Week: 17

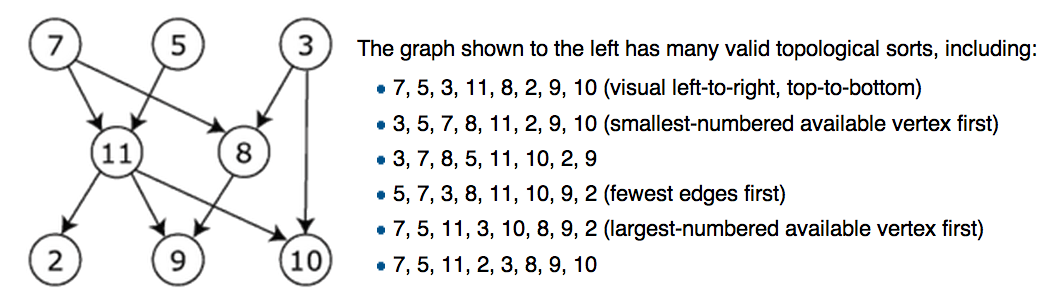

Topological Sort

Cycles

Long Cycles

Removing the Cycles

A feedback arc set is a set of edges whose removal makes the graph acyclic.

# g = igraph.Graph()
feedback_arcs = g.feedback_arc_set(method='exact')
g.delete_edges(feedback_arcs)

NP-Complete!

Optimal Rank

1		9		17		25
2		10		18		26
3		11		19		27
4		12		20		28
5		13		21		29
6		14		22		30
7		15		23		31
8		16		24		32

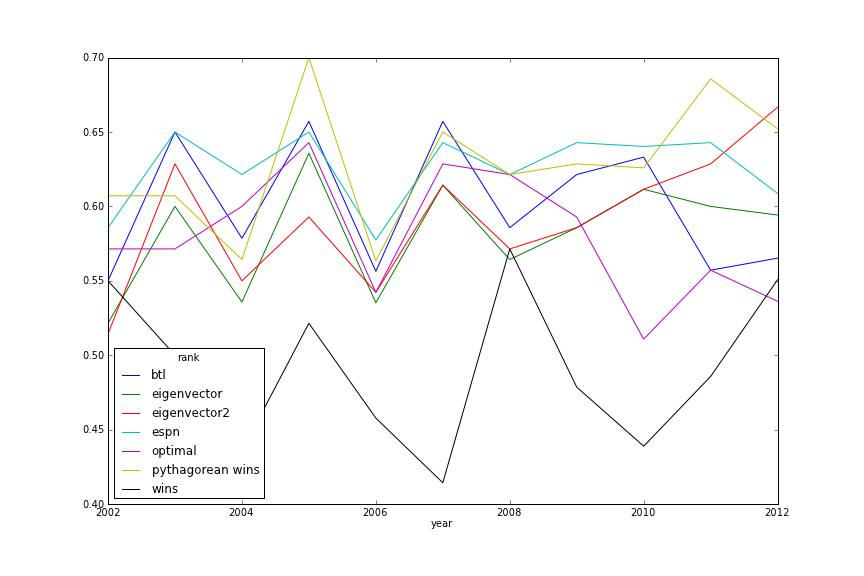

Evaluation

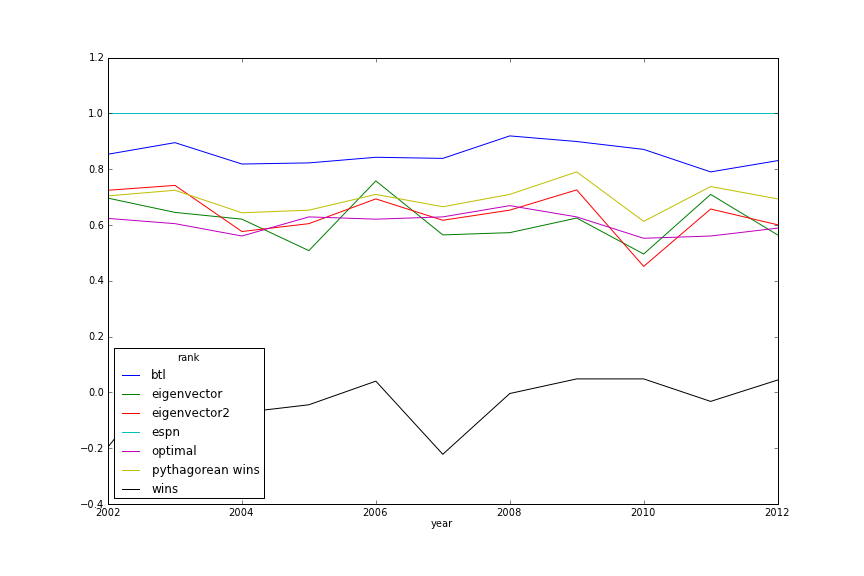

Week 8 Power Rankings Similarity

Week 17 Power Rankings Similarity

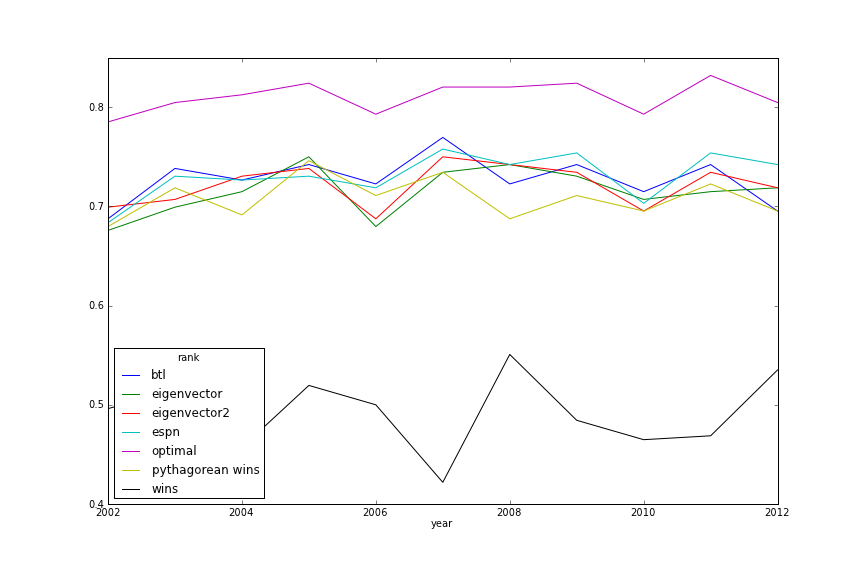

Descriptive

In-Season Prediction

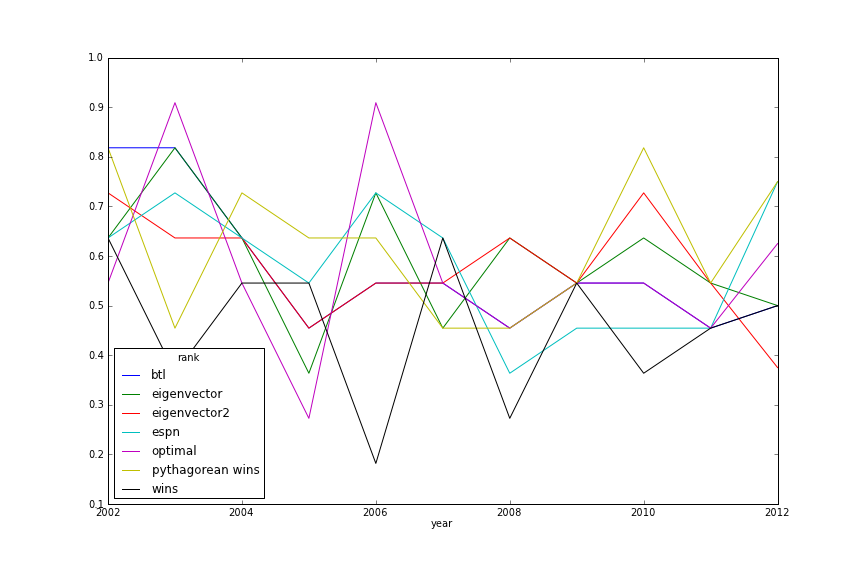

Post-Season Prediction
